Raked Rudders

Compensating for steeply raked rudders.

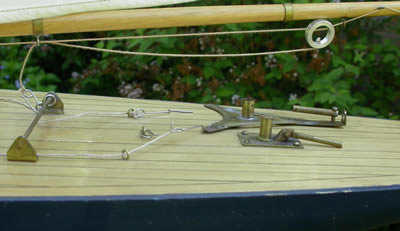

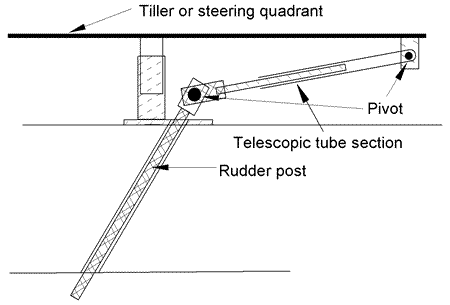

Many traditional hull designs have a steeply raked rudder and this can cause trouble when connecting a steering arm, whether vane or radio. I saw this neat solution to the problem on Xmuna and the construction is clearly shown in the picture and diagram. The material is brass with steel pivot pins and the parts are simply soft soldered together.
