Gaff Yacht
Nothing much known about this one but it is reputedly about WWW1 period.

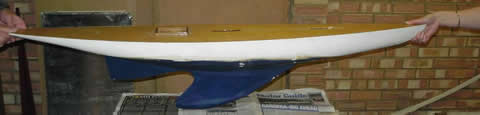

Hull = 5ft 1¼ inch long, Width = 12 inch, Depth = 12 inch.

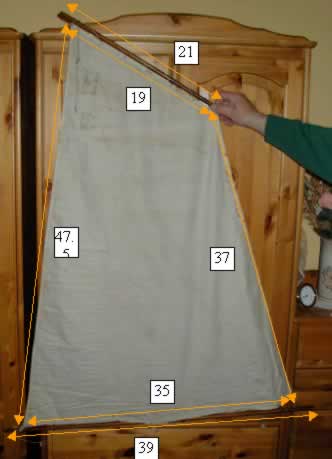

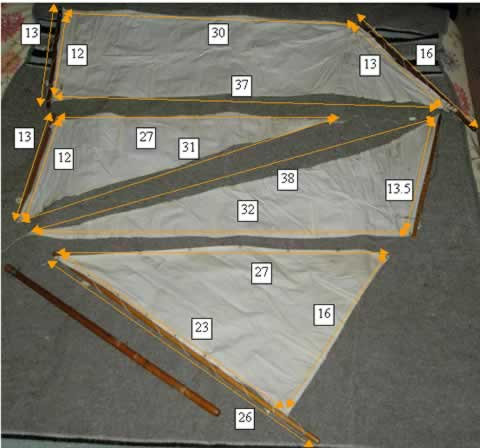

Sail measurements in inches




VMYG identification by Russell Potts
My initial reaction is that is is a 10
rater and the date sounds about right. I think that none of the sails now
associated with the boat are anything like what she would have carried originally.
Depending on her date, if she is a 10, she would have had Solent rig, as in
the Rules material on LSA Rule boats, or later, after about 1930, a bermuda
sloop.
From the deck view she appears to have a second mast aperture, so that she
could be rigged as a schooner. In fact the more I think about it, I think
she is a boat to Prospero's lines. The LoA is right and the profile is very
similar. If she is a Prospero,
the displacement should be 20 pounds, after making allowance for the rig,
which will be at least a pound and a half, as there are two of everything.
The structure weight including rig on the original as only 5 pounds, but very
few other builders managed as good a job of weight control; as Bill Daniels.
Prospero rated as a 15-rater with her topsails and as a 10 without them.
